With a Meshtastic antenna the advice is to put it as high as you can with as few obstructions as you can manage. For my home setup that meant a few physical iterations as it went from inside my office, to inside the attic, to outside the attic below the roofline, and finally outside the attic and higher than the roofline.

As an engineer I want baseline quality data before I make a change, so I know if my change helped, did nothing, or actually made things worse. I don’t have the knowledge or the tools to really measure the quality of my antenna setups, and I want real-world connectivity metrics more than I want a gain measurement.

At first I tried using the Meshtastic Range Test module and walking around with a handheld unit to find the geographic boundary at which I lost signal from my home mounted antenna, hypothesizing that with antenna improvements that range would increase. Unfortunately I couldn’t get decent data in a reasonable amount of time. The Range Test module broadcasts a sequential message every thirty seconds and both nodes are supposed to keep logs of what’s sent and received and where you were standing, but they were always near blank when I exported them and the GPS location info from my handheld wasn’t great whether I was using the location from the portable node or my connected phone. I gave up on this after a few days of long, circular dog walks.

Once I built a script to download node database info I started running that hourly and dumping the output from my home node to a growing json file. Then I was able to use jq to parse out only the nodes that were zero hops away (directly connected) from my home node with this command line:

1

jq -r '.time as $when | .nodes[] | select(.hopsAway == 0) | [ $when, .num, .lastHeard, .snr ] | @csv' repeated_info.json

That got me CSV rows containing the time the data was gathered, the remote node id, when that node was last heard from, and the signal to noise ratio of the direct connection to that node. In a spreadsheet I was able to look across days of data and compare the quality of my connection, represented by the signal to noise ratio, of each node I directly connect to. I’m able to screen out duplicate reads using the lastHeard value and can deduce the antenna position from the time of the read and a list of when I made the antenna improvements (tab 4). Since snr values are exponential they can’t be averaged, but I take the median value, which might even be statistically valid?

With a day’s worth of reads I see enough of the same nodes that they can be directly compared, which is what I’ve done below, but I also think there’s also value looking at the median signal to noise value in aggregate too. Signal to noise is a dimensionless ratio with a higher value being better, and anything above zero meaning the signal exceeds the noise. The numbers I’ve got below skew negative, but the signal is getting through.

So far I’ve found that having the antenna outside the house is better than having it inside the house, and that having it above the roofline helps even more. It’s probably not what an RF engineer would have done, but it’s enough to feel good about the time I spent leaning out of a third floor window mounting a not too attractive antenna mast on the side of our house.

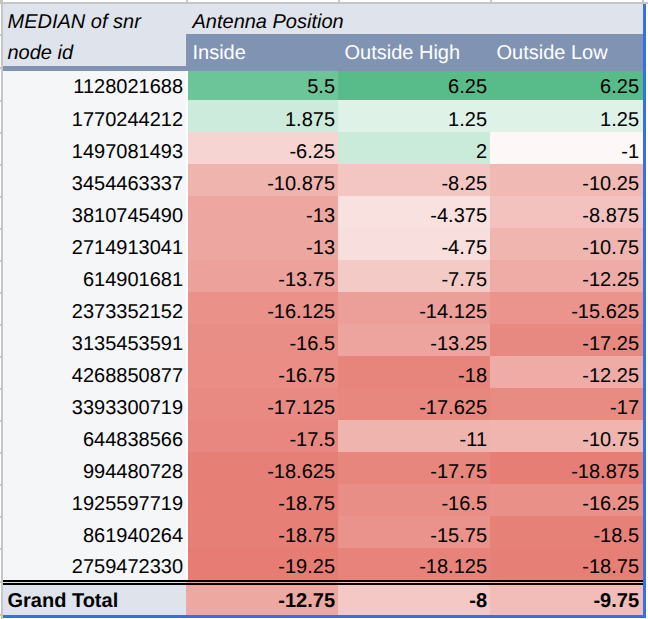

screenshot of aggregate connection quality data

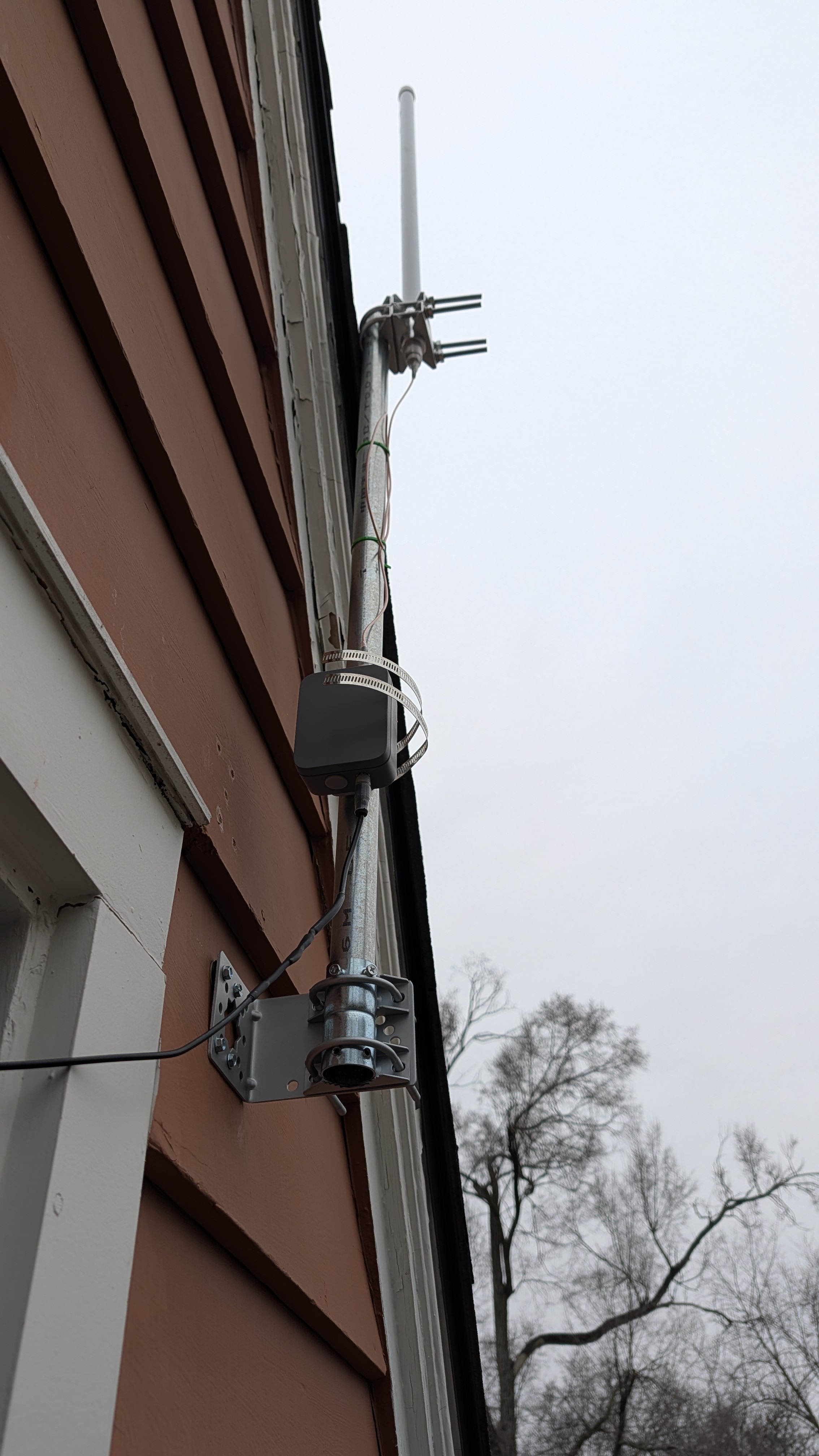

Meshtastic node mounted outside a window
(caption: Meshtastic node mounted outside a window - click to embiggen)
